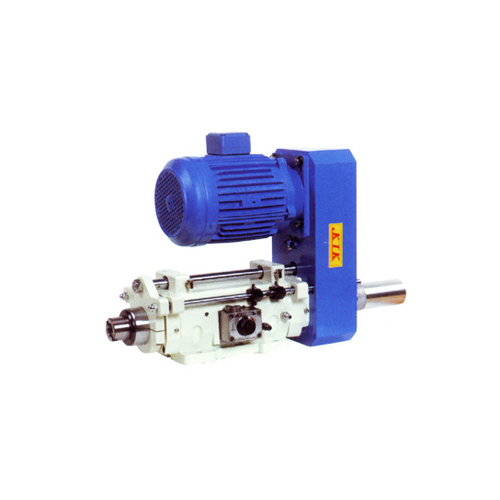

Ball Screw Servo Drilling Spindle Head

We present Ball Screw Servo Drilling Spindle Head, which is a precision drilling tool. It utilizes a ball screw as well as servo motor for attaining high accuracy and control in drilling operations. The ball screw that used by this tool converts rotary motion into linear motion that allows for accurate movement of the drill bit, while the servo motor offers perfect control of the position and speed of the spindle. The Ball Screw Servo Drilling Spindle Head is available in different models, and is mostly utilized in diverse industries such as automotive, aerospace, and medical device manufacturing.

Features under this category



• Modular construction for S.P. M. manufacturer
• Modules are of wide range and has unique feature of interchangeability.
• Modules are simple in assembly and suitable for wide range of various applications.
• In both orientation i.e. horizontal OR vertical, the Modules can be mounted easily.
• The raw material used for modules while manufacturing are of precise quality grade. Because of that, the modules have long life and consistence performance during operations.
• Modules are tested under strict norms.
• The complete dimensional drawings in 2D presentation are available.



Specification

Model	NC-4150	NC-5100	NC-6150	NC-7200	NC-9200
Capacity (S45C)	Ë6mm	Ë10mm	Ë16mm	Ë25mm	Ë35mm
Spindle Stroke	100mm	100mm	150mm	200mm	130mm
Spindle Taper	ER16	ER20	MT2	MT3	MT4
Spindle Speed	2500-3400-4200	830-1670-2500	920-1300-1670	300-1500 (Optional)	250-1250 (Optional)
Spindle Motor	1.0 HP	1.0 HP	2.0 HP	2.0 HP	3.0 HP
Ball Screw	16mmx5.0	20 mm X 5.0	25mmx5.0	32mmx5.0	40 mm X 5
Servo Motor	400W	750W	750W	1KW	1500W
Motor Shaft	14mm	19mm	19mm	24mm	24mm
